Titre

Stucco and glass window with cypress trees and flowers in a vase

Type d'objet
Dimensions
117 x 36 cm (without frame); 128.5 x 47 x 4.5 cm (with frame)
Artiste
Lieu de production
Égypte · ?
Syrie
Datation
early 13th–early 14th centuries AH / 19th century CE
Lieu
Numéro d'inventaire
11053
Projet de recherche
Auteur·e et date de la notice
Francine Giese, Sophie Wolf 2025

Iconographie

Description

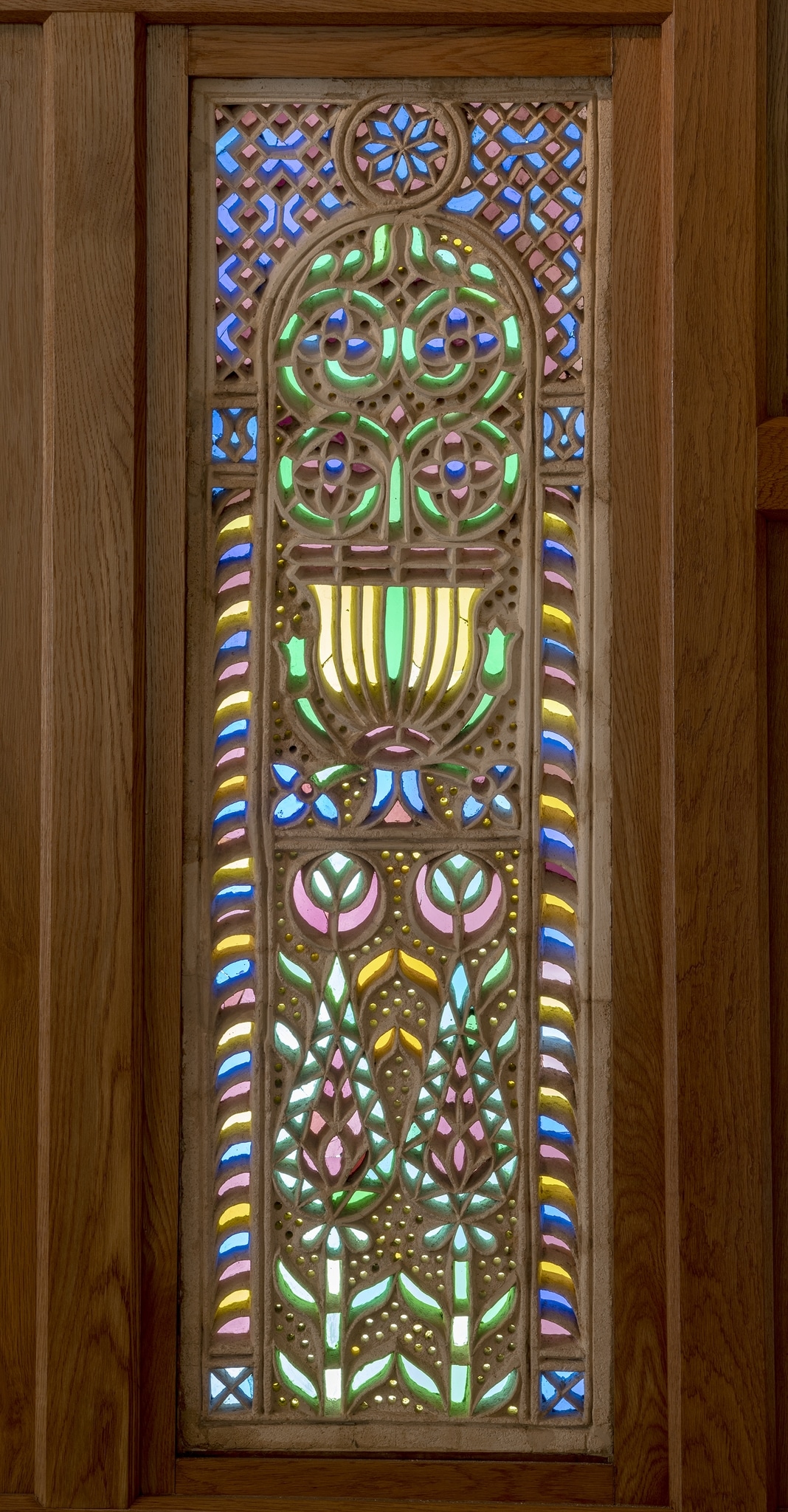

Rectangular stucco and glass window with a bipartite central field composed of two cypress trees topped by two stylised flowers in the lower half and a vase with symmetrically arranged spiral tendrils ending in three- or four-petalled flowers in the upper half. Both motifs are set against a perforated background, which is slightly recessed. The upper half of the central field is framed by a round arch ending in a knot that encloses an eight-pointed star. A canopy-like architecture consisting of columns with twisted shafts supporting the arch surrounds the main composition.

Code Iconclass
25G3(CYPRESS) · arbres : cyprès
25G41 · fleurs
41A6711 · fleurs dans un vase
48C14 · représentations architecturales en général
Mot-clés Iconclass

Matériaux, technique et état de conservation

Matériaux

Coarse-grained gypsum plaster; coloured glass (several shades of green, turquoise, three shades of blue, three shades of yellow, two shades of purple)

Technique

Latticework carved into a rectangular stucco panel and inlaid with coloured sheet pieces of glass. The pieces of glass are fixed on the back of the lattice with a thin layer of gypsum plaster. The thickness of the stucco panel ranges between 30mm and 33mm. The stucco panel was cast in a wooden frame.

The design of the latticework has two levels: the main motif (level 0) has been carved out of the stucco panel with sharp, knife-like tools following a template incised in the surface of the panel. Traces of the incisions are still visible in some places on the front. The second level (level –1), which lies approximately 7mm below level 0, shows irregularly spaced, conical perforations. The holes were pierced with a metal or wooden pin in the stucco before it was fully set. They are approximately 7mm in diameter and slightly tapered towards the back. The distance between the holes is 5–8mm. All holes are backed with yellow glass.

The main design and the perforations have been worked in such a way that the incident light is directed downwards into the room.

The glass is coloured in the mass. Elongated parallel bubbles indicate that the glass sheets were mouth-blown (most probably cylinder-blown).

Etat de conservation et restaurations

The window is well preserved and was thoroughly restored in 2003. During this intervention, the remains of earlier repairs were largely removed. The restoration measures included cleaning the dirty and weathered surface of the stucco lattice (laser cleaning, density: 1.5 J/cm2 at 1064nm), bonding cracks with acrylic resin, and filling lacunae in the stucco lattice with acrylic filler. The repairs were retouched with pigmented acrylic emulsion. In addition, fragile areas were strengthened with gauze and acrylic resin. The original wooden frame was cleaned with solvent and reinforced by adding an aluminium frame. At the time of restoration, around 85% of the original pieces of glass were preserved. Missing pieces were replaced with new ones, which were attached with cellulose nitrate.

Historique de l'oeuvre

Recherche

The stucco and glass window, which has a largely identical counterpart in IG_357, also held at the Benaki Museum of Islamic Art, stands out from most of the examples studied. Although it combines two of the most common motifs of stucco and glass windows, it differs significantly in the way these motifs are represented: the cypress trees (in the lower half of the window) are not entwined with tendrils, as is usually the case in windows with this motif. The flowers-in-a-vase motif (upper half) differs from the standard representation, in that the vase does not contain a bouquet composed of different flowers, but only holds two spiral tendrils that are strongly reminiscent of the Umayyad mosaics of the Dome of the Rock in Jerusalem. Also, the architectural frame is hardly found in any of the specimens examined (except IG_359 in the same museum). However, it is a common element in medieval book illumination, for example.

From a technical point of view, it can be assumed that this bipartite window was made in an Egyptian workshop. Although the rear of the window was not accessible during our examination, it can be concluded from the restoration report of 2004 that the window was made according to the traditional technique used in the manufacture of qamariyyāt in North Africa to this day (see Technique).

According to the museum records, the window dates to the 16th or 17th century. However, there are some indications that speak against this early date. On the one hand, the unusual representation of the two motifs, which could be the result of historicist tendencies, suggests a later dating. On the other hand, the window was in a relatively good state of preservation before the restoration in 2003, despite the poor weather resistance of the stucco lattice. If the window had been installed in a building in the 16th or 17th century and been exposed to the weather for two or three centuries, we would have expected it to be more heavily weathered before its restoration in 2003. Moreover, the pieces of glass show the characteristics of cylinder-blown sheet glass, a technique that was uncommon in the Islamic world at that time and more commonly used in Europe. Interestingly, the Hungarian architect Max Herz (1856–1819) states in 1902 that sheet glass was imported to Egypt from Europe from the 19th century, because local sheet-glass production had come to a standstill (Herz, 1902, p. 53).

The Cairo-based, Cypriot art and antique dealer Phokion Tanos (1898–1972) donated this window – along with 12 other qamariyyāt (11049–11059, 20969, 20960, see IG_336–359) – to the Benaki Museum in Athens, probably in the 1940s.

Datation
early 13th–early 14th centuries AH / 19th century CE
Période
1800 – 1899
Sites antérieures
Lieu de production
Égypte · ?
Syrie

Provenance

Propriétaire
Dès 1940 (ca.): Benaki Museum of Islamic Art, Numéro d'inventaire: 11053, Athènes (Grèce), Donation
Propriétaire précédent·e
De [année de réception inconnue] jusque 1940 (ca.): Tanos, Phokion J.

Bibliographie et sources

Bibliographie

Ballian, Anna (ed.) (2006): Benaki Museum. A Guide to the Museum of Islamic Art, Athens, Benaki Museum, pp. 136–137.

Herz, M. (1902). Le musée national du Caire. Gazette des Beaux-Arts, 3. Pér. 28, 45–59, 497–505.

Expositions

since 2004: Room III of the premanent exhibition of the Benaki Museum of Islamic Art, Athens
