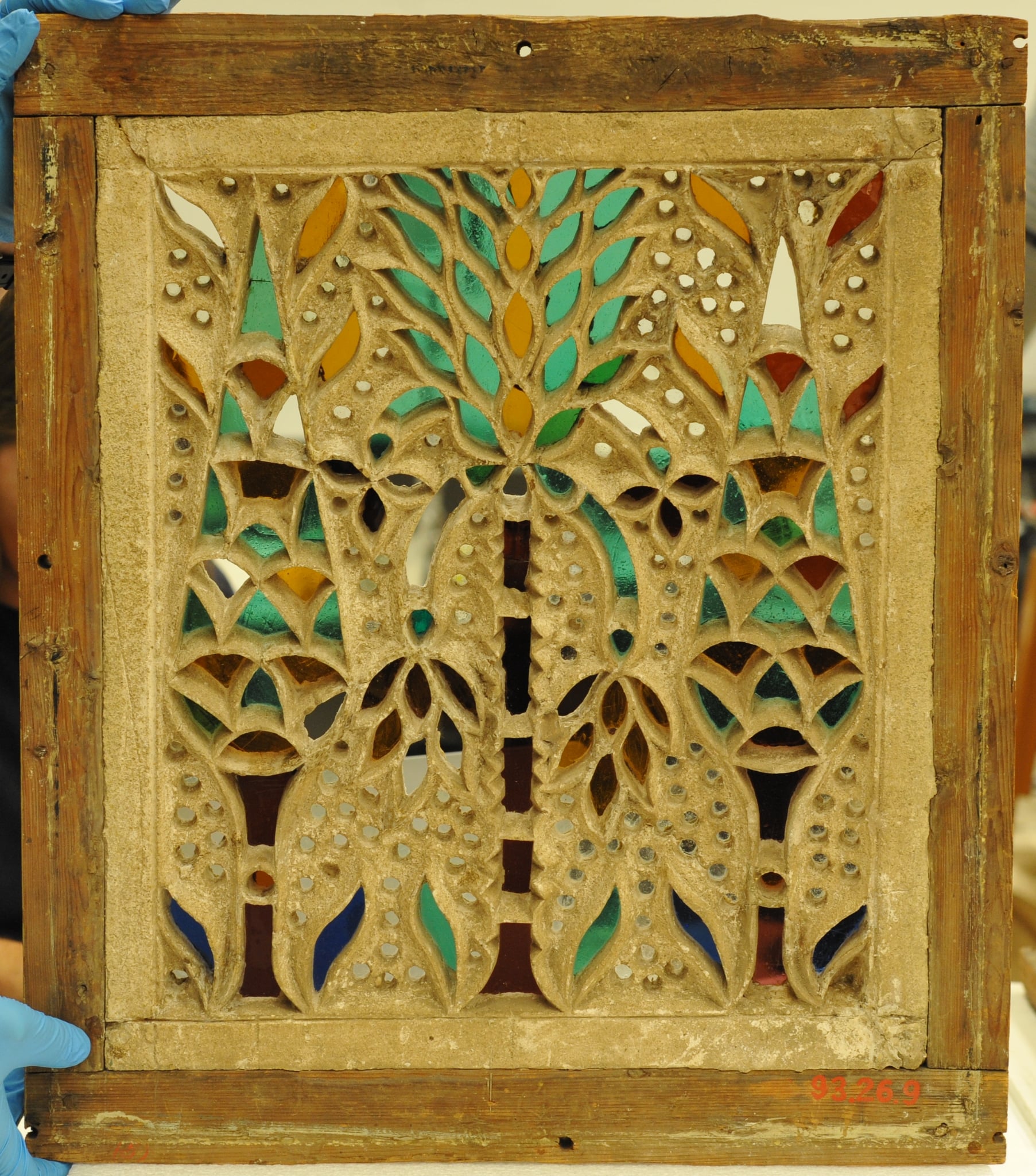

Rectangular stucco and glass window representing a palm tree flanked by two cypress trees. The palm is a date palm whose branches bend downwards under the weight of the fruit. Two flowers spring from the trunk above the branches with the date fruits. The trees are set against a perforated, slightly recessed background.
Coarse-grained gypsum plaster; colourless glass (with a greyish or greenish tint); coloured glass (two shades of green, blue, two shades of yellow including orange colour, purple)
The latticework was into a rectangular stucco panel with a porous surface and inlaid with colourless and coloured sheet glass. The pieces of glass are fixed onto the back of the lattice with a thin layer (c.1.5mm) of gypsum plaster. To prevent the pieces of glass from being displaced while pouring the embedding stucco, some of the pieces seem to have been fixed to the latticework with an adhesive. In some places, traces of this animal or vegetable glue are visible in the area around the openings. The thickness of the stucco panel is c.20–25mm. The stucco panel was cast in a wooden frame. The dimensions of the frame are c.50 × 40 × 30mm.
The design of the latticework has two levels. The main motif (level 0) has been carved out of the stucco panel with sharp, knife-like tools. The second level (level –1), which lies 10–12mm below level 0, consists of regularly spaced perforations. The holes were pierced with a metal or wooden pin in the stucco before it was fully set. They vary between 10 and 12mm in diameter and are slightly tapered towards the back. The distance between the holes is 4–6mm. All holes are backed with colourless glass. The main design and the perforations have been worked in such a way that the incident light is directed downwards into the room.
The pieces of glass were cut according to the design of the latticework using a glass-cutter. The glass sheets from which the pieces were cut are mouth-blown. A few pieces of glass show uneven surfaces and elongated, parallel bubbles; several pieces have straight edges with a round profile, which probably corresponds to the edge of the original glass sheet from which the piece was cut. These features suggest that the sheet glass was produced using the broad-sheet method. The coloured glass (1.5–2mm) is slightly thicker than the colourless (c.1–1.5mm).
The stucco latticework shows a few small fissures (in three of the four the corners), but is intact. Several pieces of glass are missing. There are signs of earlier restorations. These repairs involved refixing loose pieces of glass and supplementing the thin plaster layer in which the pieces of glass are embedded with various materials (grey and white plaster and clay?). The corners of the wooden frame were reinforced with metal brackets and curved strips of wood.
This stucco and glass window is one of the few examples preserved in Western museum collections representing a palm tree. Several windows of this type are preserved at the Victoria and Albert Museum in London, among them ME.3-2005, MES.LOST.25, MES.LOST.34, and C.157-1932. It was produced according to the traditional method used in the manufacture of qamariyyāt in North Africa to this day (see Technique).
According to the museum records, the window dates to the 18th century. However, the good state of preservation of the stucco lattice raises doubts about this early dating. If the window had actually been installed in a building in the 18th century, we would have expected to observe clearer traces of weathering.
A hand-written letter dated 22 May 1893 to Luigi Palma di Cesnola (1832–1904), the then director of The Metropolitan Museum of Art in New York provides information on the provenance of the window. The author of this letter, the American architect William Robert Ware (1832–1915), writes that he had acquired this and various other windows in the spring of 1890 from several well-known art and antiquity dealers in Cairo. He mentions [Gaspare] Giuliana, [E. M.] Malluk, [Nicolas?] Tano, and [Panayotis] Kyticas (on their commercial activities see Volait, 2021, pp. 60–64). In his letter, Ware further states that he was told that the windows ‘had been taken from old houses’ and ‘from old mosques, that had been dismantled’, but that he was not able to get ‘any precise information as to their original places’ (Ware, 1893).
In 1893, Ware donated this window as part of a lot of 17 qamariyyāt (IG_169, IG_171–186) to The Metropolitan Museum of Art (Ware, 1893).
Herz, M. (1902). Le musée national du Caire. Gazette des Beaux-Arts, 3. Pér. 28, 45–59, 497–505.
Volait, M. (2021). Antique Dealing and Creative Reuse in Cairo and Damascus 1850–1890. Leiden: Brill.
Ware, W. R. (1893, May 22). [Letter to Luigi Palma di Cesnola]. MET Archives (W 229), New York City, NY, United States.
